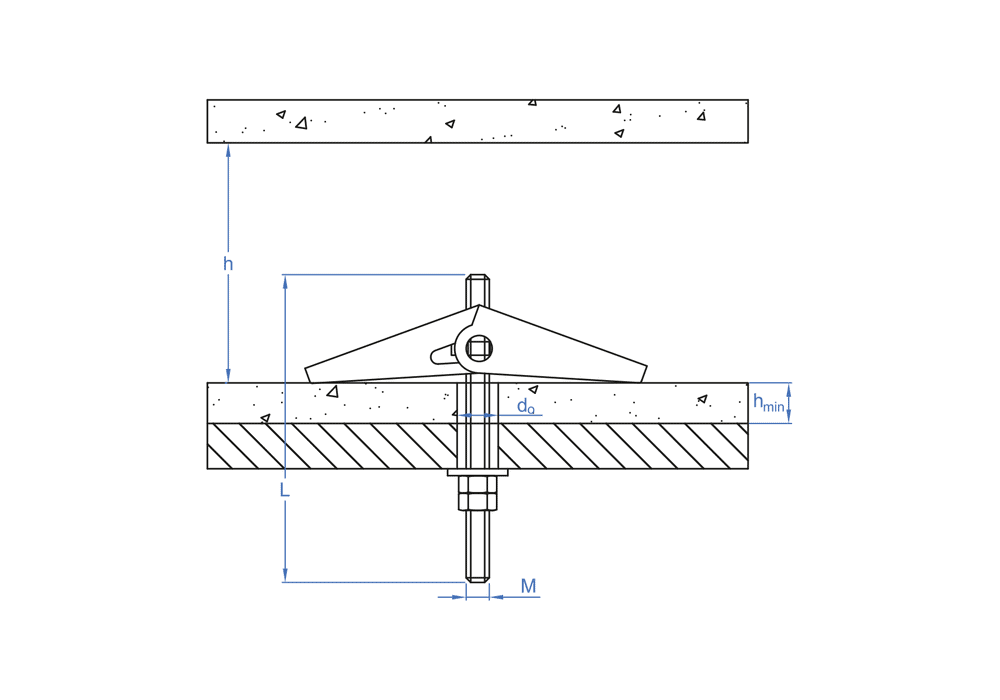

PA-ES spring-loaded toggle with rod

Spring-loaded toggle for fixing lightweight elements to hollow ceilings made of plasterboard, plaster or other materials such as hollow concrete. It incorporates a threaded rod, nuts and a washer for easy installation of lamps, fans or other objects. It is made of zinc-coated steel.
CODESIZEMin. Order Qty.Pcs. x jarPcs BoxPcs/BlisterPcs/Window BoxPcs MasterboxBlisters/Bisters boxWindow boxes/MasterboxEANTechnical info.
PAESM04M4 Ø121000503008423533207302
  • h1 - Drill hole depth min.26
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness75
PAESM05M5 Ø151000503008423533207401
  • h1 - Drill hole depth min.33
  • d0 - Ø Drill15
  • hmin - Min. substrate thickness70
PAESM06M6 Ø181000502008423533207500
  • h1 - Drill hole depth min.37
  • d0 - Ø Drill18
  • hmin - Min. substrate thickness66
PAESM08M8 Ø22500501508423533207609
  • h1 - Drill hole depth min.54
  • d0 - Ø Drill22
  • hmin - Min. substrate thickness61
VPAESM04M4 Ø1206688423533754295
  • h1 - Drill hole depth min.26
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness75
VPAESM06M6 Ø1804488423533754318
  • h1 - Drill hole depth min.37
  • d0 - Ø Drill18
  • hmin - Min. substrate thickness66
BZPAESM04M4 Ø12022128423533422507
  • h1 - Drill hole depth min.26
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness75
BZPAESM05M5 Ø15022128423533422514
  • h1 - Drill hole depth min.33
  • d0 - Ø Drill15
  • hmin - Min. substrate thickness70
BZPAESM06M6 Ø18022108423533422521
  • h1 - Drill hole depth min.37
  • d0 - Ø Drill18
  • hmin - Min. substrate thickness66
  • Lamp clamp
  • Ceiling anchor
  • Signs
  • False ceiling
  • Fluorescent lamps
  • Ceiling lamps
  • Ceiling light
  • Ceiling light
PR102BI14697 CP PA ES PA ES SZ4
PR102BI14009 CP PA ES PA ES SZ4
PA-ES
icon book
Technical Sheets
FT_BASC_en_rev3.pdf
icon camera
Multimedia
Video
