PA-GA spring-loaded toggle lever with hook

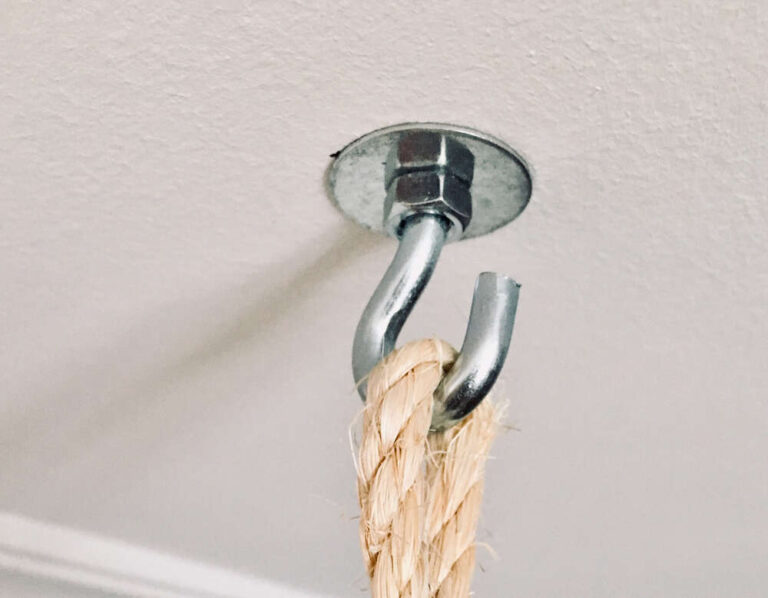

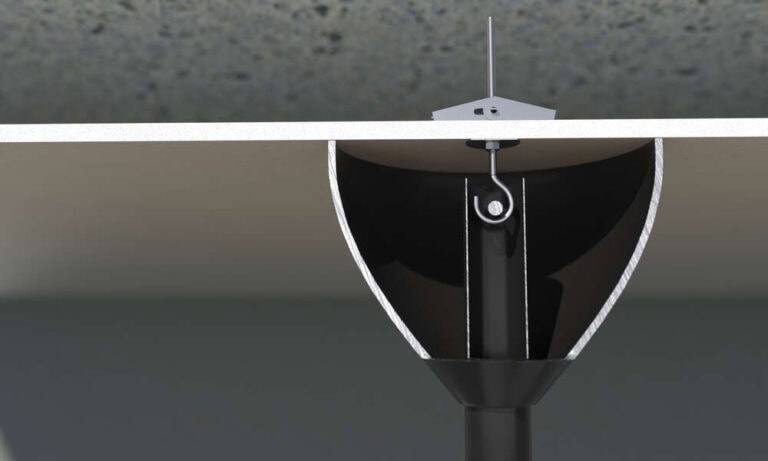

Spring-loaded toggle with hook, nut and washer. Designed for easy installation of light elements in plasterboard, hollow concrete or plaster ceilings. It allows objects such as ceiling fans, lamps or soffits to be fixed. It is made of zinc-coated steel.
CODESIZEMin. Order Qty.Pcs. x jarPcs BoxPcs/BlisterPcs/Window BoxPcs MasterboxBlisters/Bisters boxWindow boxes/MasterboxEANTechnical info.
PAGAM04M4 Ø121000503008423533207708
  • h1 - Drill hole depth min.26
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness75
PAGAM05M5 Ø151000503008423533207807
  • h1 - Drill hole depth min.33
  • d0 - Ø Drill15
  • hmin - Min. substrate thickness70
PAGAM06M6 Ø181000502008423533207906
  • h1 - Drill hole depth min.37
  • d0 - Ø Drill18
  • hmin - Min. substrate thickness66
PAGAM08M8 Ø22500501508423533208002
  • h1 - Drill hole depth min.54
  • d0 - Ø Drill22
  • hmin - Min. substrate thickness61
VPAGAM04M4 Ø1206688423533754325
  • h1 - Drill hole depth min.26
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness75
BZPAGAM04M4 Ø12022128423533422538
  • h1 - Drill hole depth min.26
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness75
BZPAGAM05M5 Ø15022128423533422545
  • h1 - Drill hole depth min.33
  • d0 - Ø Drill15
  • hmin - Min. substrate thickness70
BZPAGAM06M6 Ø18022108423533422552
  • h1 - Drill hole depth min.37
  • d0 - Ø Drill18
  • hmin - Min. substrate thickness66
  • Lamp clamp
  • Ceiling anchor
  • Signs
  • False ceiling
  • Fluorescent lamps
  • Ceiling lamps
  • Ceiling light
  • Ceiling light
PR103BI14698 CP PA GA PA GA SZ4
PR103BI14700 CP PA GA PA GA SZ4
PR103BI14701 CP PA GA PA GA SZ4
PR103BI14702 CP PA GA PA GA SZ4
PR103BI14703 CP PA GA PA GA SZ4
PR103BI14704 CP PA GA PA GA SZ4
PR103BI14699 CP PA GA PA GA SZ4
PR103BI14010 CP PA GA PA GA SZ4
PA-GA
icon book
Technical Sheets
FT_BASC_en_rev3.pdf
icon camera
Multimedia
Video

related products

PA-ES

PA-ES

Spring toggle. Projecting bolt
CA-PA

CA-PA

Spring toggle. Spring toggle head
BA-ES

BA-ES

Gravity toggle for fixing lightweight in ceilings. Projecting bolt
BA-GA

BA-GA

Gravity toggle for fixing lightweight in ceilings. Hook
CA-BA

CA-BA

Gravity toggle for fixing lightweight in ceilings. Toggle head
