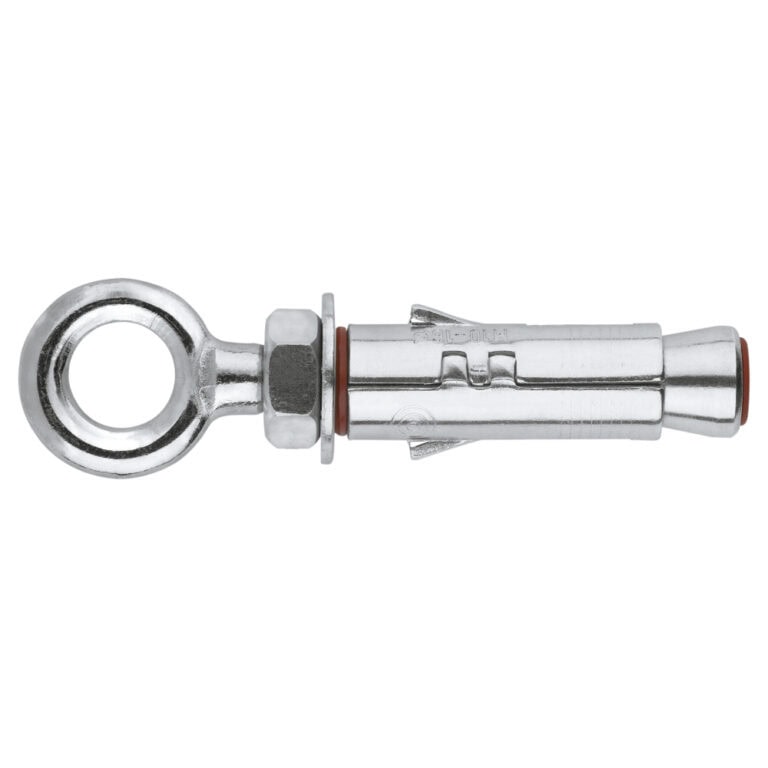

Anti-spin sleeve anchor with eye bolt HI-AR

Anti-spin sleeve anchor for high loads in non-cracked concrete and other solid materials. It incorporates an eyebolt, which allows the subsequent installation of elements such as cables or trellising. Torque-controlled expansion anchor. Made of zinc-plated steel.
CODESIZENº RECESSAPERTURE HOOKEYE BOLT ØPcs BoxPcs MasterboxEANTechnical info.
AHIAR0645M6 x 45 Ø12101004008423533604132
  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • Tins - Torque (Nm)10
  • hef - Effective depth30
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght45
AHIAR0855M8 x 55 Ø1412503008423533604149
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • Tins - Torque (Nm)20
  • hef - Effective depth35
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght55
AHIAR1065M10 x 65 Ø1614502008423533604187
  • tfix - Max. fixture thickness-
  • SW - Installation key17
  • Tins - Torque (Nm)40
  • hef - Effective depth45
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness100
  • L - Lenght65
AHIAR1275M12 x 75 Ø201725758423533604194
  • tfix - Max. fixture thickness-
  • SW - Installation key19
  • Tins - Torque (Nm)65
  • hef - Effective depth55
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness110
  • L - Lenght75
AHIAR1690M16 x 90 Ø242310308423533604200
  • tfix - Max. fixture thickness-
  • SW - Installation key24
  • Tins - Torque (Nm)150
  • hef - Effective depth70
  • hnom - Min. anchor depth100
  • h1 - Drill hole depth min.105
  • d0 - Ø Drill24
  • hmin - Min. substrate thickness140
  • L - Lenght90
