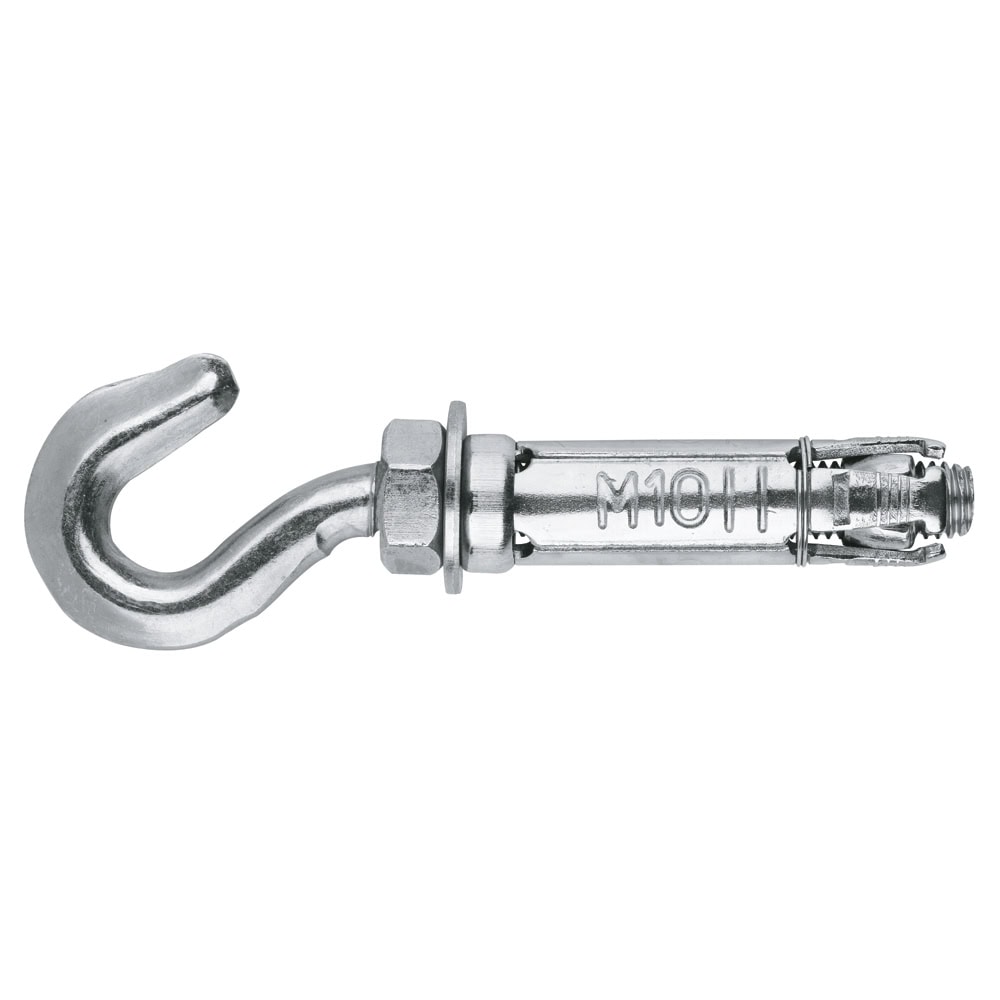

Steel anchor with hook bolt AC-GA

Expansion anchor with hook bolt. For fixing high load-bearing elements in uncracked concrete and other solid materials. Installation by controlled torque. The hook allows the subsequent installation of stakes or cables. Made of zinc plated steel.
CODESIZENº RECESSAPERTURE HOOKEYE BOLT ØPcs BoxPcs MasterboxEANTechnical info.
AACGA06M6 x 40 Ø1010506008423533594686
  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)10
  • hef - Effective depth40
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght40
AACGA08M8 x 50 Ø1411503008423533594693
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)25
  • hef - Effective depth50
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght50
AACGA10M10 x 60 Ø1614501008423533594709
  • tfix - Max. fixture thickness-
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)50
  • hef - Effective depth60
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness120
  • L - Lenght60
AACGA12M12 x 80 Ø201825508423533594716
  • tfix - Max. fixture thickness-
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)85
  • hef - Effective depth80
  • hnom - Min. anchor depth80
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness160
  • L - Lenght80
