Anti-spin sleeve anchor with hexagonal head screw CH-88

Medium duty sleeve anchor, with hexagonal bolt 8.8. For use in solid materials. It is equipped with anti-rotation devices that prevent the anchor from rotating during tightening. Operates by means of torque controlled mechanical expansion. Made of zinc plated steel
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU27BI9317 ETA UN 18 0018 ETA UN 18 0018 SZ6
EKOU23BI9354 HO CE 18 CE 2018 SZ7
CODESIZENº RECESSAPERTURE HOOKEYE BOLT ØPcs BoxPcs MasterboxEANTechnical info.
ACHT8808CM6 x 45 Ø82001.2008423533584366

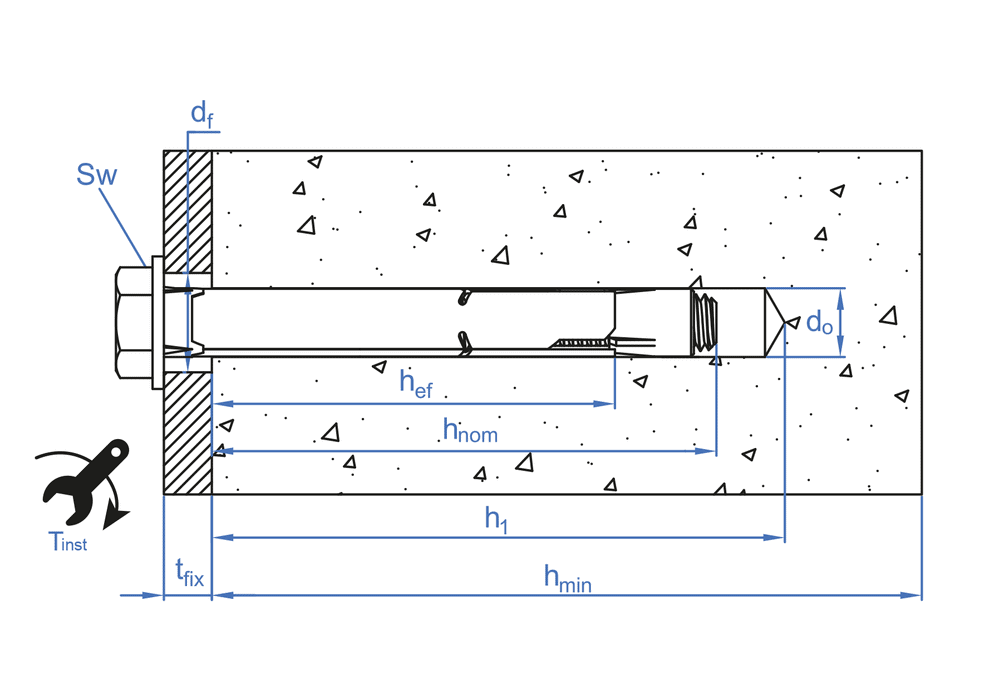

  • tfix - Max. fixture thickness5
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hef - Effective depth30
  • hnom - Min. anchor depth39
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght45
ACHT8808LM6 x 60 Ø82008008423533584380
  • tfix - Max. fixture thickness20
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hef - Effective depth30
  • hnom - Min. anchor depth39
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght60
ACHT8810CM8 x 60 Ø101006008423533584410
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hef - Effective depth40
  • hnom - Min. anchor depth51
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght60
ACHT8810LM8 x 80 Ø101004008423533584434
  • tfix - Max. fixture thickness27
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hef - Effective depth40
  • hnom - Min. anchor depth51
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght80
ACHT8812CM10 x 70 Ø121002008423533584458
  • tfix - Max. fixture thickness5
  • SW - Installation key17
  • df - Ø Element to fix14
  • Tins - Torque (Nm)35
  • hef - Effective depth48
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght70
ACHT8812LM10 x 100 Ø12502008423533584472
  • tfix - Max. fixture thickness32
  • SW - Installation key17
  • df - Ø Element to fix14
  • Tins - Torque (Nm)35
  • hef - Effective depth48
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght100
ACHT8816CM12 x 80 Ø16502008423533584502
  • tfix - Max. fixture thickness5
  • SW - Installation key19
  • df - Ø Element to fix18
  • Tins - Torque (Nm)50
  • hef - Effective depth55
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness110
  • L - Lenght80
ACHT8816LM12 x 110 Ø16501008423533584519
  • tfix - Max. fixture thickness37
  • SW - Installation key19
  • df - Ø Element to fix18
  • Tins - Torque (Nm)50
  • hef - Effective depth55
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness110
  • L - Lenght110
ACHT8820CM16 x 110 Ø2025508423533584533
  • tfix - Max. fixture thickness15
  • SW - Installation key24
  • df - Ø Element to fix22
  • Tins - Torque (Nm)140
  • hef - Effective depth72
  • hnom - Min. anchor depth92
  • h1 - Drill hole depth min.105
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness145
  • L - Lenght110
  • Air conditioning units
  • Installation of fire extinguishers
  • Aerials
  • Street furniture
  • Railings
  • Balcony railings
  • Balcony railings
  • Road railings
  • Wooden railings
PR6BI12033 CP CH 8 8 CH 8 8 SZ4
PR6BI12034 CP CH 8 8 CH 8 8 SZ4
PR6BI12035 CP CH 8 8 CH 8 8 SZ4
CH-8.8
icon book
Technical Sheets
FT_CH_en_rev18.pdf
icon security
Assessments
ETA_CH_en_rev1.pdf
icon camera
Multimedia
Video
icon table
Declaration of Performances
DoP_CH_en_rev2.pdf
How can I check if an anchor has been properly installed?
Can an expansion anchor be retightened to its nominal torque once installed?
What installation torque should you apply to an anchor?
What are the different types of concrete?
What testing machines do you recommend for on-site tests?
What should I do in the event a drilling is aborted (e.g
