Produkte / Montagesysteme / Massivrohrschellen / AB-ZI / Produkte / AB-ZI
AB-ZI
AB-ZI

AB-ZI

Rundstahlbügel. Verzinkt

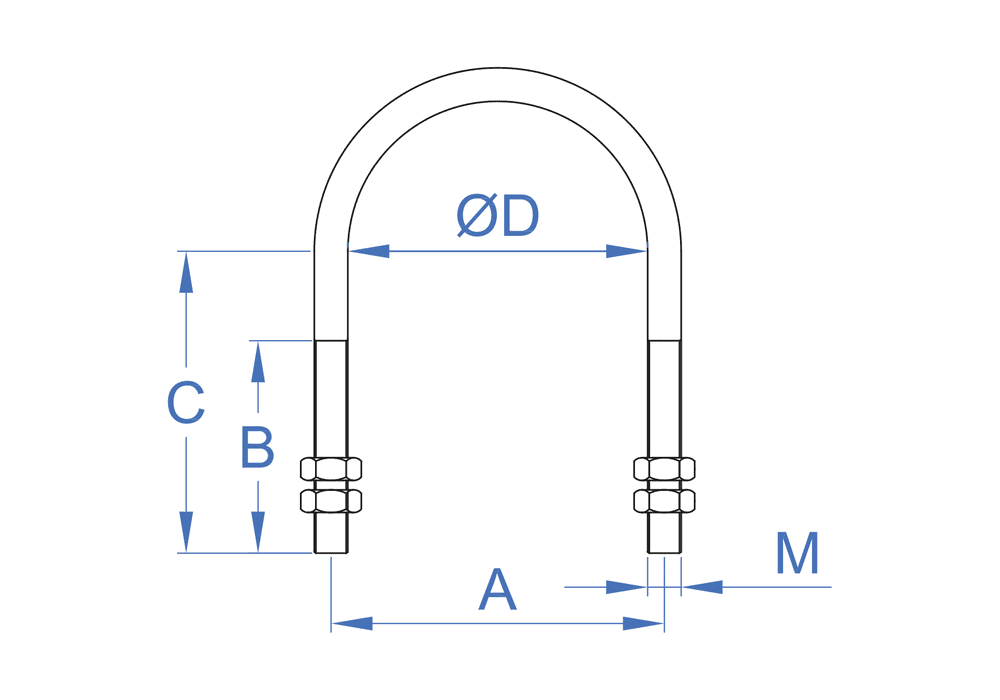

CODEABMESSUNGMAXIMALE LASTMindestbestellmengeStk VerpackungStk UmverpackungEANTechnische Info.
AZIM060250M6 1/4"25001008008423533048080
  • A x B20 / 14 / 20
AZIM060375M6 3/8"25001001.2008423533048110
  • A x B23,5 / 15 / 23
AZIM060500M6 1/2"25001006008423533048127
  • A x B27,5 / 17 / 25
AZIM060750M6 3/4"25001006008423533048134
  • A x B33 / 19 / 31
AZIM061000M6 1"25001004008423533048141
  • A x B39,5 / 24 / 39
AZIM061250M6 1 1/4"2500503008423533048158
  • A x B48,5 / 24 / 44
AZIM081500M8 1 1/2"3500501508423533048165
  • A x B56,5 / 26 / 48
AZIM082000M8 2"3500501508423533048172
  • A x B68,5 / 26 / 53
AZIM082250M8 2 1/4"3500501008423533048189
  • A x B83 / 35 / 63
AZIM082500M8 2 1/2"3500501008423533048219
  • A x B83 / 35 / 71
AZIM083000M8 3"3500501008423533048226
  • A x B99 / 35 / 76
AZIM083500M8 3 1/2"3500501008423533048233
  • A x B112 / 35 / 82
AZIM084000M8 4"3500501008423533048240
  • A x B125 / 35 / 87
AZIM084500M8 4 1/2"3500251008423533048257
  • A x B140 / 40 / 100
AZIM085000M8 5"3500251008423533048264
  • A x B152 / 40 / 105
AZIM086000M8 6"3500251008423533048271
  • A x B179 / 40 / 118
AZIM103000M10 3"350025508423533048288
  • A x B100 / 45 / 66
AZIM103500M10 3 1/2"350025508423533048318
  • A x B110 / 50 / 94
AZIM104000M10 4"3500251008423533048325
  • A x B125 / 55 / 97,5
AZIM105000M10 5"3500251008423533048332
  • A x B150 / 55 / 108
AZIM106000M10 6"3500251008423533048349
  • A x B170 / 55 / 125
AZIM108000M10 8"3500251008423533048356
  • A x B230 / 55 / 148
  • Rohrschelle
  • Rohrschelle
  • Dachrinnenschelle
  • Betongebäude im Bau
  • Klimaanlagen
  • Stützschelle
icon book
Technical Sheets
FT_ABMETP_de_rev4.pdf
