Produkte / Montagesysteme / Massivrohrschellen / AB-ZI / Produkte / AB-ZI A2
AB-ZI A2
AB-ZI A2

AB-ZI A2

Rundstahlbügel. Rostfrei A2

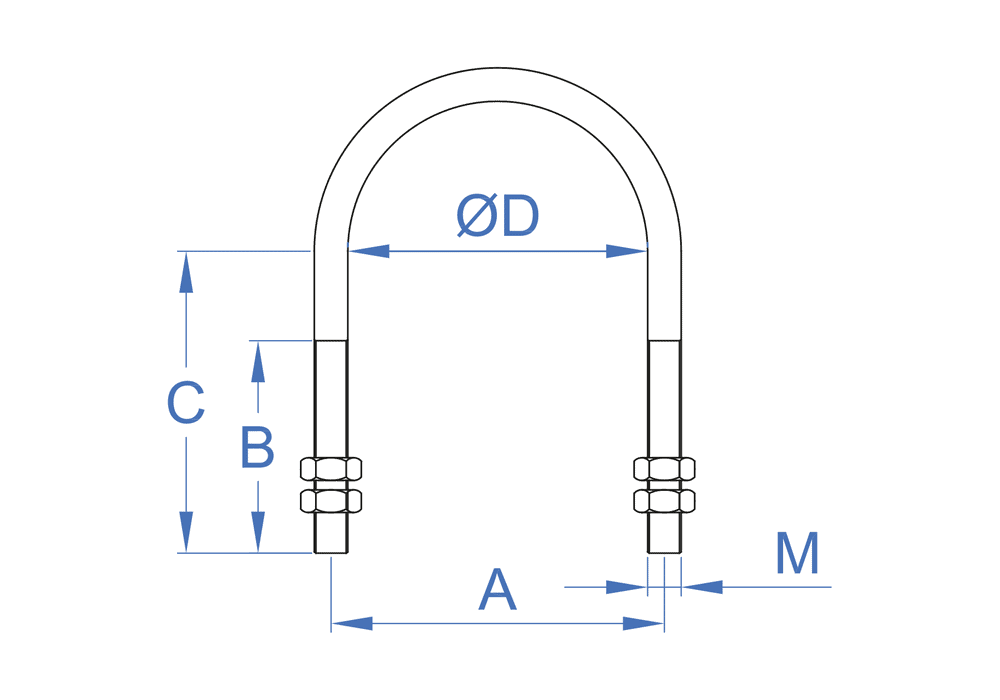

CODEABMESSUNGMAXIMALE LASTMindestbestellmengeStk VerpackungStk UmverpackungEANTechnische Info.
AZA2060500M6 1/2"25001006008423533829047
  • A x B27,5 / 17 / 25
AZA2060750M6 3/4"25001006008423533829054
  • A x B33 / 19 / 31
AZA2061000M6 1"25001004008423533829061
  • A x B39,5 / 24 / 39
AZA2061250M6 1 1/4"2500503008423533829078
  • A x B48,5 / 24 / 44
AZA2081500M8 1 1/2"3500501508423533829085
  • A x B56,5 / 26 / 48
AZA2082000M8 2"3500501508423533829092
  • A x B68,5 / 26 / 53
AZA2082500M8 2 1/2"3500501008423533829108
  • A x B83 / 35 / 71
AZA2083000M8 3"3500501008423533829115
  • A x B99 / 35 / 76
AZA2104000M10 4"35005008423533832122
  • A x B125 / 55 / 97,5
AZA2106000M10 6"35002508423533832146
  • A x B170 / 55 / 125
AZA2108000M10 8"35002508423533817334
  • A x B230 / 55 / 148
icon book
Technical Sheets
FT_ABRAI_de_rev7.pdf
