Bolzenanker Zugelassen MTP

Bolzenanker für hohe Lasten in gerissenem und ungerissenem Beton. Er funktioniert durch kontrollierte Drehmomentspreizung, einen verzinkten Stahlschaft und einen A4-Clip aus rostfreiem Stahl, zugelassen nach ETE Opt.1, was seine Leistung bei strukturellen Befestigungen auf Beton gewährleistet.

ZULASSUNGEN UND ZERTIFIKATE

CODEABMESSUNGKLEMMSTÄRKE (mm)BUCHSTABE (LÄNGE)Stk VerpackungStk UmverpackungEANTechnische Info.
AP08050M8 x 50 Ø82A1008008423533710505

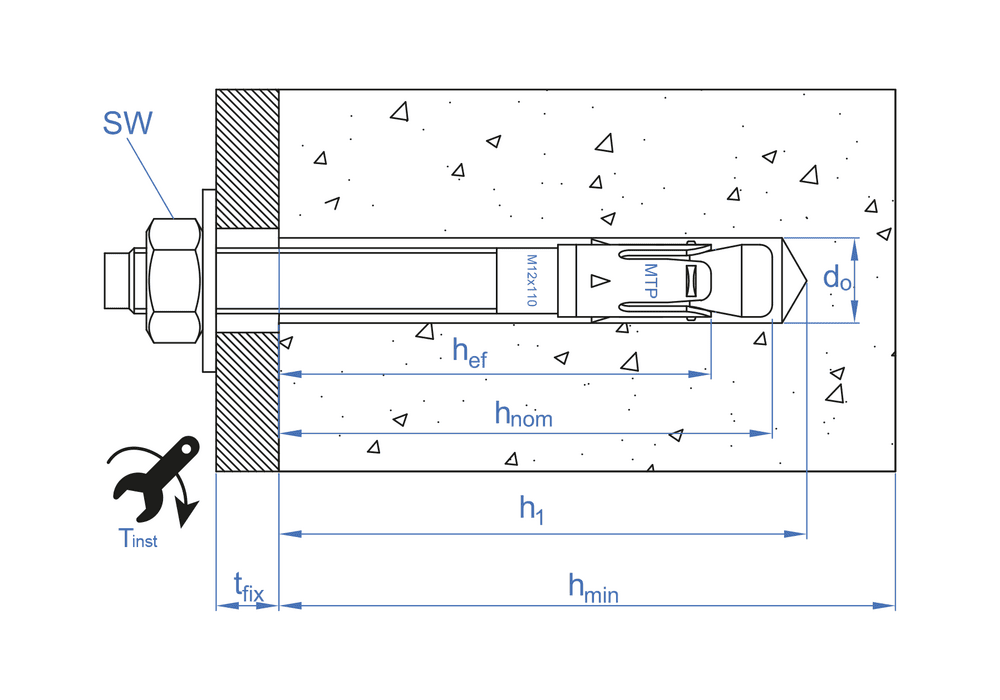

  • tfix - Dicke des Anbauteils2
  • SW - Schlüsselweite13
  • df - Ø Durchgangsbohrung im Anbauteil9
  • Tins - Montagedrehmoment (Nm)20
  • hef - Effektive Verankerungstiefe30
  • hnom - Gesamtlänge des Ankers im Beton37
  • h1 - Min. Bohrlochtiefe40
  • d0 - Ø Bohrdurchmesser8
  • hmin - Min. Dicke des Anbauteils100
AP08075M8 x 75 Ø89C1006008423533710512
  • tfix - Dicke des Anbauteils9
  • SW - Schlüsselweite13
  • df - Ø Durchgangsbohrung im Anbauteil9
  • Tins - Montagedrehmoment (Nm)20
  • hef - Effektive Verankerungstiefe48
  • hnom - Gesamtlänge des Ankers im Beton55
  • h1 - Min. Bohrlochtiefe60
  • d0 - Ø Bohrdurchmesser8
  • hmin - Min. Dicke des Anbauteils100
AP08095M8 x 95 Ø829E1006008423533710529
  • tfix - Dicke des Anbauteils29
  • SW - Schlüsselweite13
  • df - Ø Durchgangsbohrung im Anbauteil9
  • Tins - Montagedrehmoment (Nm)20
  • hef - Effektive Verankerungstiefe48
  • hnom - Gesamtlänge des Ankers im Beton55
  • h1 - Min. Bohrlochtiefe60
  • d0 - Ø Bohrdurchmesser8
  • hmin - Min. Dicke des Anbauteils100
AP08115M8 x 115 Ø849G1004008423533710536
  • tfix - Dicke des Anbauteils49
  • SW - Schlüsselweite13
  • df - Ø Durchgangsbohrung im Anbauteil9
  • Tins - Montagedrehmoment (Nm)20
  • hef - Effektive Verankerungstiefe48
  • hnom - Gesamtlänge des Ankers im Beton55
  • h1 - Min. Bohrlochtiefe60
  • d0 - Ø Bohrdurchmesser8
  • hmin - Min. Dicke des Anbauteils100
AP10090M10 x 90 Ø1010E1004008423533710543
  • tfix - Dicke des Anbauteils10
  • SW - Schlüsselweite17
  • df - Ø Durchgangsbohrung im Anbauteil12
  • Tins - Montagedrehmoment (Nm)40
  • hef - Effektive Verankerungstiefe60
  • hnom - Gesamtlänge des Ankers im Beton68
  • h1 - Min. Bohrlochtiefe75
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils120
AP10105M10 x 105 Ø1025F503008423533710550
  • tfix - Dicke des Anbauteils25
  • SW - Schlüsselweite17
  • df - Ø Durchgangsbohrung im Anbauteil12
  • Tins - Montagedrehmoment (Nm)40
  • hef - Effektive Verankerungstiefe60
  • hnom - Gesamtlänge des Ankers im Beton68
  • h1 - Min. Bohrlochtiefe75
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils120
AP10115M10 x 115 Ø1035G502008423533710567
  • tfix - Dicke des Anbauteils35
  • SW - Schlüsselweite17
  • df - Ø Durchgangsbohrung im Anbauteil12
  • Tins - Montagedrehmoment (Nm)40
  • hef - Effektive Verankerungstiefe60
  • hnom - Gesamtlänge des Ankers im Beton68
  • h1 - Min. Bohrlochtiefe75
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils120
AP10135M10 x 135 Ø1055H502008423533710574
  • tfix - Dicke des Anbauteils55
  • SW - Schlüsselweite17
  • df - Ø Durchgangsbohrung im Anbauteil12
  • Tins - Montagedrehmoment (Nm)40
  • hef - Effektive Verankerungstiefe60
  • hnom - Gesamtlänge des Ankers im Beton68
  • h1 - Min. Bohrlochtiefe75
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils120
AP10165M10 x 165 Ø1085K502008423533710581
  • tfix - Dicke des Anbauteils85
  • SW - Schlüsselweite17
  • df - Ø Durchgangsbohrung im Anbauteil12
  • Tins - Montagedrehmoment (Nm)40
  • hef - Effektive Verankerungstiefe60
  • hnom - Gesamtlänge des Ankers im Beton68
  • h1 - Min. Bohrlochtiefe75
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils120
AP10185M10 x 185 Ø10105L501508423533710598
  • tfix - Dicke des Anbauteils105
  • SW - Schlüsselweite17
  • df - Ø Durchgangsbohrung im Anbauteil12
  • Tins - Montagedrehmoment (Nm)40
  • hef - Effektive Verankerungstiefe60
  • hnom - Gesamtlänge des Ankers im Beton68
  • h1 - Min. Bohrlochtiefe75
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils120
AP12080M12 x 80 Ø124D503008423533710604
  • tfix - Dicke des Anbauteils4
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe50
  • hnom - Gesamtlänge des Ankers im Beton60
  • h1 - Min. Bohrlochtiefe65
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils100
AP12100M12 x 100 Ø124E502008423533749932
  • tfix - Dicke des Anbauteils4
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP12110M12 x 110 Ø1214F502008423533710611
  • tfix - Dicke des Anbauteils14
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP12120M12 x 120 Ø1224G502008423533710628
  • tfix - Dicke des Anbauteils24
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP12130M12 x 130 Ø1234H502008423533710635
  • tfix - Dicke des Anbauteils34
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP12150M12 x 150 Ø1254I501008423533710642
  • tfix - Dicke des Anbauteils54
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP12180M12 x 180 Ø1284L501508423533710659
  • tfix - Dicke des Anbauteils84
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP12200M12 x 200 Ø12104M501508423533710666
  • tfix - Dicke des Anbauteils104
  • SW - Schlüsselweite19
  • df - Ø Durchgangsbohrung im Anbauteil14
  • Tins - Montagedrehmoment (Nm)60
  • hef - Effektive Verankerungstiefe70
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe85
  • d0 - Ø Bohrdurchmesser12
  • hmin - Min. Dicke des Anbauteils140
AP16145M16 x 145 Ø1628I251008423533710673
  • tfix - Dicke des Anbauteils28
  • SW - Schlüsselweite24
  • df - Ø Durchgangsbohrung im Anbauteil18
  • Tins - Montagedrehmoment (Nm)100
  • hef - Effektive Verankerungstiefe85
  • hnom - Gesamtlänge des Ankers im Beton97
  • h1 - Min. Bohrlochtiefe105
  • d0 - Ø Bohrdurchmesser16
  • hmin - Min. Dicke des Anbauteils170
AP16175M16 x 175 Ø1658K25508423533710680
  • tfix - Dicke des Anbauteils58
  • SW - Schlüsselweite24
  • df - Ø Durchgangsbohrung im Anbauteil18
  • Tins - Montagedrehmoment (Nm)100
  • hef - Effektive Verankerungstiefe85
  • hnom - Gesamtlänge des Ankers im Beton97
  • h1 - Min. Bohrlochtiefe105
  • d0 - Ø Bohrdurchmesser16
  • hmin - Min. Dicke des Anbauteils170
AP16220M16 x 220 Ø16103O25508423533710697
  • tfix - Dicke des Anbauteils103
  • SW - Schlüsselweite24
  • df - Ø Durchgangsbohrung im Anbauteil18
  • Tins - Montagedrehmoment (Nm)100
  • hef - Effektive Verankerungstiefe85
  • hnom - Gesamtlänge des Ankers im Beton97
  • h1 - Min. Bohrlochtiefe105
  • d0 - Ø Bohrdurchmesser16
  • hmin - Min. Dicke des Anbauteils170
AP16250M16 x 250 Ø16133Q25508423533710703
  • tfix - Dicke des Anbauteils133
  • SW - Schlüsselweite24
  • df - Ø Durchgangsbohrung im Anbauteil18
  • Tins - Montagedrehmoment (Nm)100
  • hef - Effektive Verankerungstiefe85
  • hnom - Gesamtlänge des Ankers im Beton97
  • h1 - Min. Bohrlochtiefe105
  • d0 - Ø Bohrdurchmesser16
  • hmin - Min. Dicke des Anbauteils170
AP20170M20 x 170 Ø2032K20408423533710710
  • tfix - Dicke des Anbauteils32
  • SW - Schlüsselweite30
  • df - Ø Durchgangsbohrung im Anbauteil22
  • Tins - Montagedrehmoment (Nm)200
  • hef - Effektive Verankerungstiefe100
  • hnom - Gesamtlänge des Ankers im Beton114
  • h1 - Min. Bohrlochtiefe125
  • d0 - Ø Bohrdurchmesser20
  • hmin - Min. Dicke des Anbauteils200
AP20200M20 x 200 Ø2062N20408423533710727
  • tfix - Dicke des Anbauteils62
  • SW - Schlüsselweite30
  • df - Ø Durchgangsbohrung im Anbauteil22
  • Tins - Montagedrehmoment (Nm)200
  • hef - Effektive Verankerungstiefe100
  • hnom - Gesamtlänge des Ankers im Beton114
  • h1 - Min. Bohrlochtiefe125
  • d0 - Ø Bohrdurchmesser20
  • hmin - Min. Dicke des Anbauteils200
AP24205M24 x 205 Ø2435N10308423533783738
  • tfix - Dicke des Anbauteils35
  • SW - Schlüsselweite36
  • df - Ø Durchgangsbohrung im Anbauteil26
  • Tins - Montagedrehmoment (Nm)250
  • hef - Effektive Verankerungstiefe125
  • hnom - Gesamtlänge des Ankers im Beton143
  • h1 - Min. Bohrlochtiefe155
  • d0 - Ø Bohrdurchmesser24
  • hmin - Min. Dicke des Anbauteils250
AP24235M24 x 235 Ø2465P10208423533783745
  • tfix - Dicke des Anbauteils65
  • SW - Schlüsselweite36
  • df - Ø Durchgangsbohrung im Anbauteil26
  • Tins - Montagedrehmoment (Nm)250
  • hef - Effektive Verankerungstiefe125
  • hnom - Gesamtlänge des Ankers im Beton143
  • h1 - Min. Bohrlochtiefe155
  • d0 - Ø Bohrdurchmesser24
  • hmin - Min. Dicke des Anbauteils250
  • Befestigung von Regalen
  • Stahlkonstruktionen
  • Schutzvorrichtungen
  • Straßenmöbel
  • Maschinen
  • Holzkonstruktionen
  • Antennen
  • Balkongeländer
  • Straßengeländer
  • Holzgeländer
  • Strandgeländer
  • Deckenleuchten
  • Zwischendecken
  • Zwischendecken
  • Deckenleuchten
  • Zwischendecken
  • Deckenleuchten
  • Zwischendecken
  • Decken
  • Decken
  • Decken
  • Decken
  • Decken
  • Decken
  • Decken
  • Decken
MTP
icon book
Technical Sheets
icon camera
Multimedia
icon table
Declaration of Performances
DoP_MTP_de_rev9.pdf

VERWANDTE PRODUKTES

Fordern Sie weitere Informationen an

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Mehr lesen
MTP

MTP

ETB-Zulassung Opt.1. Verzinkte Achse. Rostfreier Clip A4
Metallanker
Chemische Befestigungslösungen
Nylondübel
Befestigungselemente und Zubehör zur Fixierung von Dämmplatten (WDVS)
Hohlraum-Befestigung
Blindnieten
Zubehör für Kabelbinder und Umzäunungen
Schnellbauschrauben und Zubehör
Direktmontage
Dach-und Fassadenschrauben
Bohr-Blech-und PVC Fensterbauschrauben
Holzschrauben
Haken, Ösen und Nägel
Holzverbinder
Metrische Schrauben
Abdeckkappen, Bits und Zubehör
Massivrohrschellen
Leichte Rohrschellen
Brandschutzsysteme
Rinnenhalter
Nylon-Schellen
Profile, Schienen und Grundanbindungen
Installationssysteme und Befestigungen für Solarmodule
Trägerbefestigung
Gewindestangen und Befestigungszubehör
Sanitär-und Klimaanlagenbefestigung
DIY

TECHNISCHE AUSBILDUNG

Unsere Technikabteilung bietet Ihnen spezifische und individuell gestaltete Schulungen zu den verschiedenen Themen rund um die Welt der Befestigungen: metallische und chemische Befestigungen, Montagesysteme, Vorschriften, Durchführung von Berechnungen, usw.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Mehr lesen

BESUCH AUF BAUSTELLEN

Die Beziehung zu unseren Kunden endet nicht mit dem Verkauf unserer Produkte. Wir bei INDEX® wissen, dass es in vielen Fällen notwendig ist, den Kunden auf die Baustelle zu begleiten, wo unsere Erfahrung die Garantie dafür ist, dass alles perfekt passt. Unsere Ingenieure und Techniker unterstützen die Verantwortlichen für jedes Projekt bei der Planung und Auswahl der besten Lösung, um Zeit und Kosten auf effektivste Weise zu sparen.

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Mehr lesen

INGENIEURWESEN UND TECHNISCHE UNTERSTÜTZUNG

TÉCNICAS EXPANSIVAS S.L. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of TÉCNICAS EXPANSIVAS S.L, is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to TÉCNICAS EXPANSIVAS S.L.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja).
Mehr lesen
