Gipskartonschraube PL-F

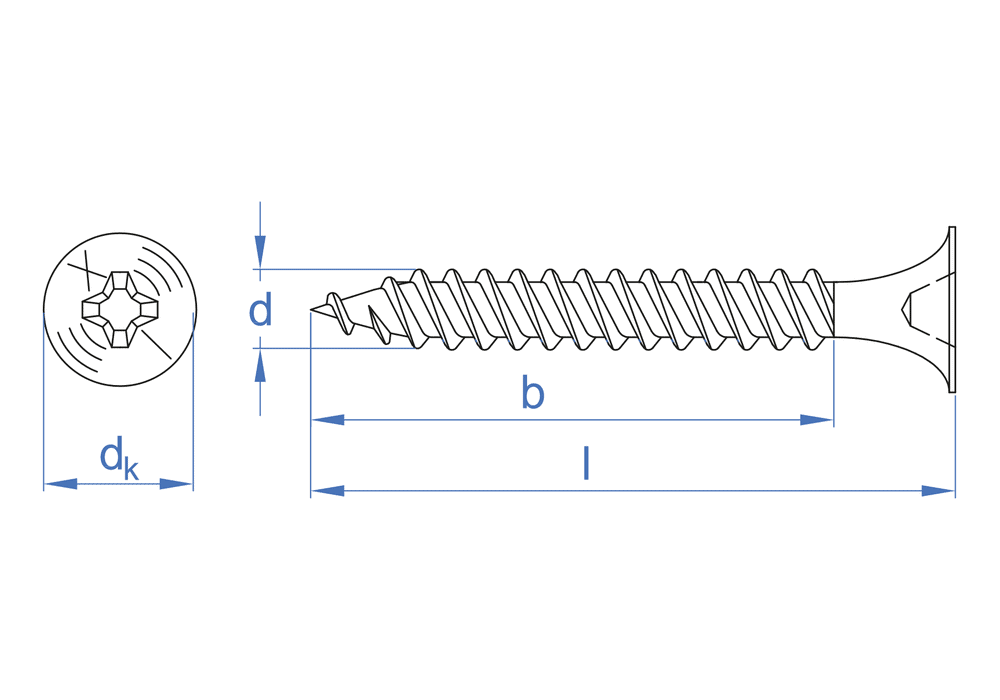

Schraube für die Befestigung von Gipskartonplatten an Metallprofilen, Holz oder anderen Platten (Brett-zu-Brett-Schrauben). Sie hat einen Trompetenkopf, einen PH2-Ausschnitt und ein Doppelgewinde. Ihre stiftförmige Spitze ermöglicht ein professionelles Durchbohren der Platten. Sie ist aus phosphatiertem Stahl gefertigt.

ZULASSUNGEN UND ZERTIFIKATE

CODEABMESSUNGNº ANTRIEBBOHRLEISTUNGMindestbestellmengeStk VerpackungStk/BlisterStk/SichfensterverpackungenStk UmverpackungBlisters/Schachtel BLSichfensterverpackungen/MasterboxEANTechnische Info.
PL350193,5 x 19PH2< 0.6 mm2.0001.00012.0008423533456441
  • tfix - Dicke des Anbauteils-
  • L - Länge19
PL350253,5 x 25PH2< 0.6 mm2.0001.00012.0008423533157409
  • tfix - Dicke des Anbauteils17
  • L - Länge25
PL350353,5 x 35PH2< 0.6 mm2.0001.0006.0008423533157508
  • tfix - Dicke des Anbauteils27
  • L - Länge35
PL350453,5 x 45PH2< 0.6 mm1.0005006.0008423533157645
  • tfix - Dicke des Anbauteils37
  • L - Länge45
PL350553,5 x 55PH2< 0.6 mm1.0005003.0008423533151681
  • tfix - Dicke des Anbauteils47
  • L - Länge55
PL390253,9 x 25PH2< 0.6 mm2.0001.00012.0008423533157805
  • tfix - Dicke des Anbauteils16
  • L - Länge25
PL390353,9 x 35PH2< 0.6 mm2.0001.0006.0008423533456397
  • tfix - Dicke des Anbauteils-
  • L - Länge35
PL390453,9 x 45PH2< 0.6 mm1.0005003.0008423533456403
  • tfix - Dicke des Anbauteils-
  • L - Länge45
PL390553,9 x 55PH2< 0.6 mm1.0005003.0008423533456410
  • tfix - Dicke des Anbauteils-
  • L - Länge55
PL420704,2 x 70PH2< 0.6 mm5005003.0008423533456427
  • tfix - Dicke des Anbauteils-
  • L - Länge70
PL420804,2 x 80PH2< 0.6 mm5005002.0008423533456434
  • tfix - Dicke des Anbauteils-
  • L - Länge80
PL480904,8 x 90PH2< 0.6 mm5005001.5008423533158406
  • tfix - Dicke des Anbauteils78,5
  • L - Länge90
PL481004,8 x 100PH2< 0.6 mm5005001.0008423533158505
  • tfix - Dicke des Anbauteils88,5
  • L - Länge100
PL481104,8 x 110PH2< 0.6 mm5005001.0008423533158604
  • tfix - Dicke des Anbauteils98,5
  • L - Länge110
PL481204,8 x 120PH2< 0.6 mm5005001.0008423533158703
  • tfix - Dicke des Anbauteils108,5
  • L - Länge120
PL481304,8 x 130PH2< 0.6 mm5005001.0008423533158802
  • tfix - Dicke des Anbauteils118,5
  • L - Länge130
VPL350253,5 x 25PH2< 0.6 mm025088423533754233
  • tfix - Dicke des Anbauteils17
  • L - Länge25
VPL350353,5 x 35PH2< 0.6 mm025088423533754240
  • tfix - Dicke des Anbauteils27
  • L - Länge35
VPL350453,5 x 45PH2< 0.6 mm015088423533754257
  • tfix - Dicke des Anbauteils37
  • L - Länge45
BZPL350253,5 x 25PH2< 0.6 mm050108423533424877
  • tfix - Dicke des Anbauteils17
  • L - Länge25
BZPL350353,5 x 35PH2< 0.6 mm040108423533424884
  • tfix - Dicke des Anbauteils27
  • L - Länge35
BZPL350453,5 x 45PH2< 0.6 mm025108423533424891
  • tfix - Dicke des Anbauteils37
  • L - Länge45
  • Im Bau befindliches Gebäude aus Beton
icon book
Technical Sheets
icon table
Declaration of Performances
DoP_PL_de_rev2.pdf
