AVC
AVC

Einmörtelanker für belüftete Fassaden AVC

Einmörtelanker für belüftete Fassaden, zur Befestigung von Stein oder Verkleidungen mit chemischen Dübeln. Geeignet für Fassaden aus Voll- und Hohlprofilen. Hergestellt aus rostfreiem Stahl A2.
CODEABMESSUNGMindestbestellmengeStk. x EimerStk VerpackungStk UmverpackungEANTechnische Info.
AVC081208 x 120 Ø8001004008423533725790

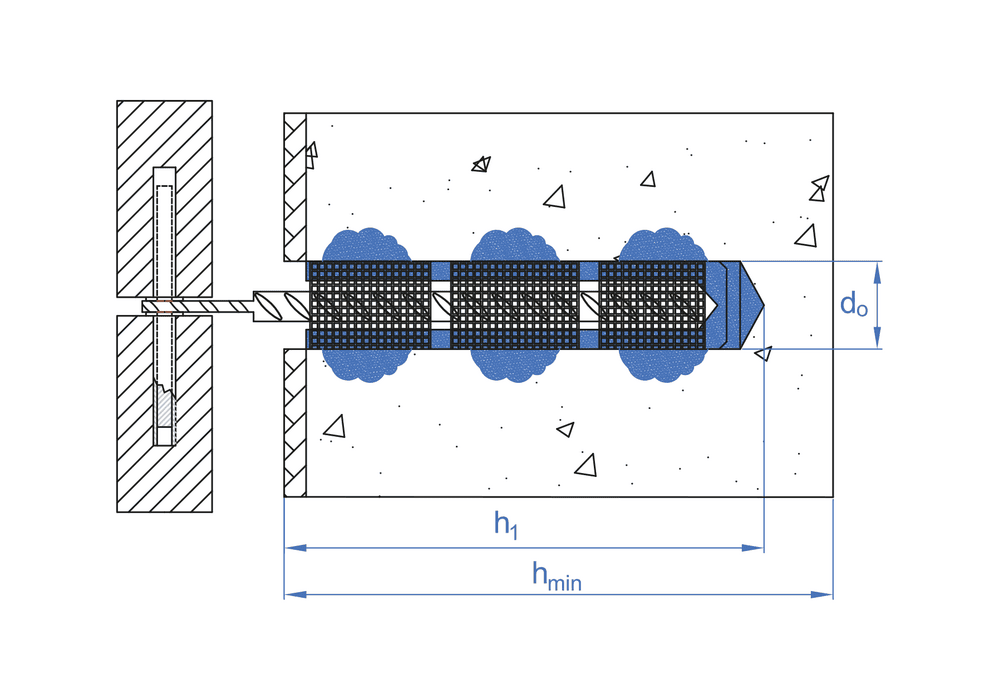

  • df - Ø Durchgangsbohrung im Anbauteil12
  • hnom - Gesamtlänge des Ankers im Beton25
  • h1 - Min. Bohrlochtiefe55 / 90
  • d0 - Ø Bohrdurchmesser8
  • hmin - Min. Dicke des Anbauteils60 / 100
AVC081508 x 150 Ø80010008423533725806
  • df - Ø Durchgangsbohrung im Anbauteil12
  • hnom - Gesamtlänge des Ankers im Beton80
  • h1 - Min. Bohrlochtiefe55 / 90
  • d0 - Ø Bohrdurchmesser8
  • hmin - Min. Dicke des Anbauteils60 / 100
AVC1012010 x 120 Ø10001004008423533725813
  • df - Ø Durchgangsbohrung im Anbauteil15
  • hnom - Gesamtlänge des Ankers im Beton65
  • h1 - Min. Bohrlochtiefe90
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils90
AVC1015010 x 150 Ø10001002008423533725820
  • df - Ø Durchgangsbohrung im Anbauteil15
  • hnom - Gesamtlänge des Ankers im Beton50
  • h1 - Min. Bohrlochtiefe90 / 135
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils90 / 140
AVC1018010 x 180 Ø10001002008423533725837
  • df - Ø Durchgangsbohrung im Anbauteil15
  • hnom - Gesamtlänge des Ankers im Beton40
  • h1 - Min. Bohrlochtiefe90 / 135
  • d0 - Ø Bohrdurchmesser10
  • hmin - Min. Dicke des Anbauteils90 / 140
  • Im Bau befindliches Gebäude aus Beton
icon book
Technical Sheets
FT_AV_en_rev4.pdf
