Produkte / Verankerungen / Nylondübel / TCA / Produkte / TC-2A
TC-2A
TC-2A
TC-2A
TC-2A
TC-2A
TC-2A
TC-2A
TC-2A

TC-2A

Nageldübel Polyamid 6.6. Nylondübel mit zwei Flossen und Senkkopfschraube

CODEABMESSUNGNº ANTRIEBKLEMMSTÄRKE (mm)MindestbestellmengeStk VerpackungStk UmverpackungEANTechnische Info.
TC2A060606 X 60 Ø6TX203001001.2008423533057907

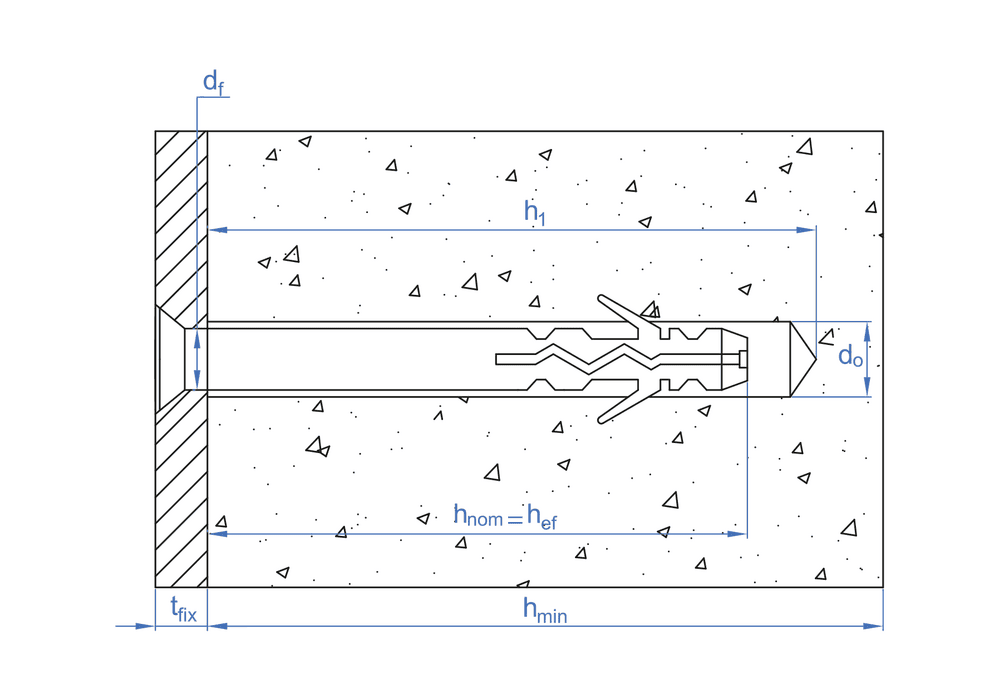

  • tfix - Dicke des Anbauteils30
  • h1 - Min. Bohrlochtiefe35
  • d0 - Ø Bohrdurchmesser6
  • L - Länge60
TC2A080608 X 60 Ø8TX302001006008423533058003
  • tfix - Dicke des Anbauteils20
  • h1 - Min. Bohrlochtiefe45
  • d0 - Ø Bohrdurchmesser8
  • L - Länge60
TC2A080808 x 80 Ø8TX304001006008423533058102
  • tfix - Dicke des Anbauteils40
  • h1 - Min. Bohrlochtiefe45
  • d0 - Ø Bohrdurchmesser8
  • L - Länge80
TC2A081008 x 100 Ø8TX306001004008423533058201
  • tfix - Dicke des Anbauteils60
  • h1 - Min. Bohrlochtiefe45
  • d0 - Ø Bohrdurchmesser8
  • L - Länge100
TC2A081208 x 120 Ø8TX308001004008423533058300
  • tfix - Dicke des Anbauteils80
  • h1 - Min. Bohrlochtiefe45
  • d0 - Ø Bohrdurchmesser8
  • L - Länge120
TC2A1006510 x 65 Ø10TX402001004008423533058409
  • tfix - Dicke des Anbauteils20
  • h1 - Min. Bohrlochtiefe50
  • d0 - Ø Bohrdurchmesser10
  • L - Länge65
TC2A1008010 x 80 Ø10TX403501004008423533058508
  • tfix - Dicke des Anbauteils35
  • h1 - Min. Bohrlochtiefe50
  • d0 - Ø Bohrdurchmesser10
  • L - Länge80
TC2A1010010 x 100 Ø10TX405501003008423533058607
  • tfix - Dicke des Anbauteils55
  • h1 - Min. Bohrlochtiefe50
  • d0 - Ø Bohrdurchmesser10
  • L - Länge100
TC2A1011510 x 115 Ø10TX407001003008423533058706
  • tfix - Dicke des Anbauteils70
  • h1 - Min. Bohrlochtiefe50
  • d0 - Ø Bohrdurchmesser10
  • L - Länge115
TC2A1013510 x 135 Ø10TX409001003008423533058805
  • tfix - Dicke des Anbauteils90
  • h1 - Min. Bohrlochtiefe50
  • d0 - Ø Bohrdurchmesser10
  • L - Länge135
TC2A1016010 x 160 Ø10TX4011501002008423533058904
  • tfix - Dicke des Anbauteils115
  • h1 - Min. Bohrlochtiefe50
  • d0 - Ø Bohrdurchmesser10
  • L - Länge160
  • Verankerung von Spalieren
  • Verankerung von Regalen
  • Installation von Feuerlöschern
  • Wäscheleine
  • Handläufe
  • Schilder
  • Laternen
TC-2A
icon book
Technical Sheets
FT_TC_en_rev13.pdf
